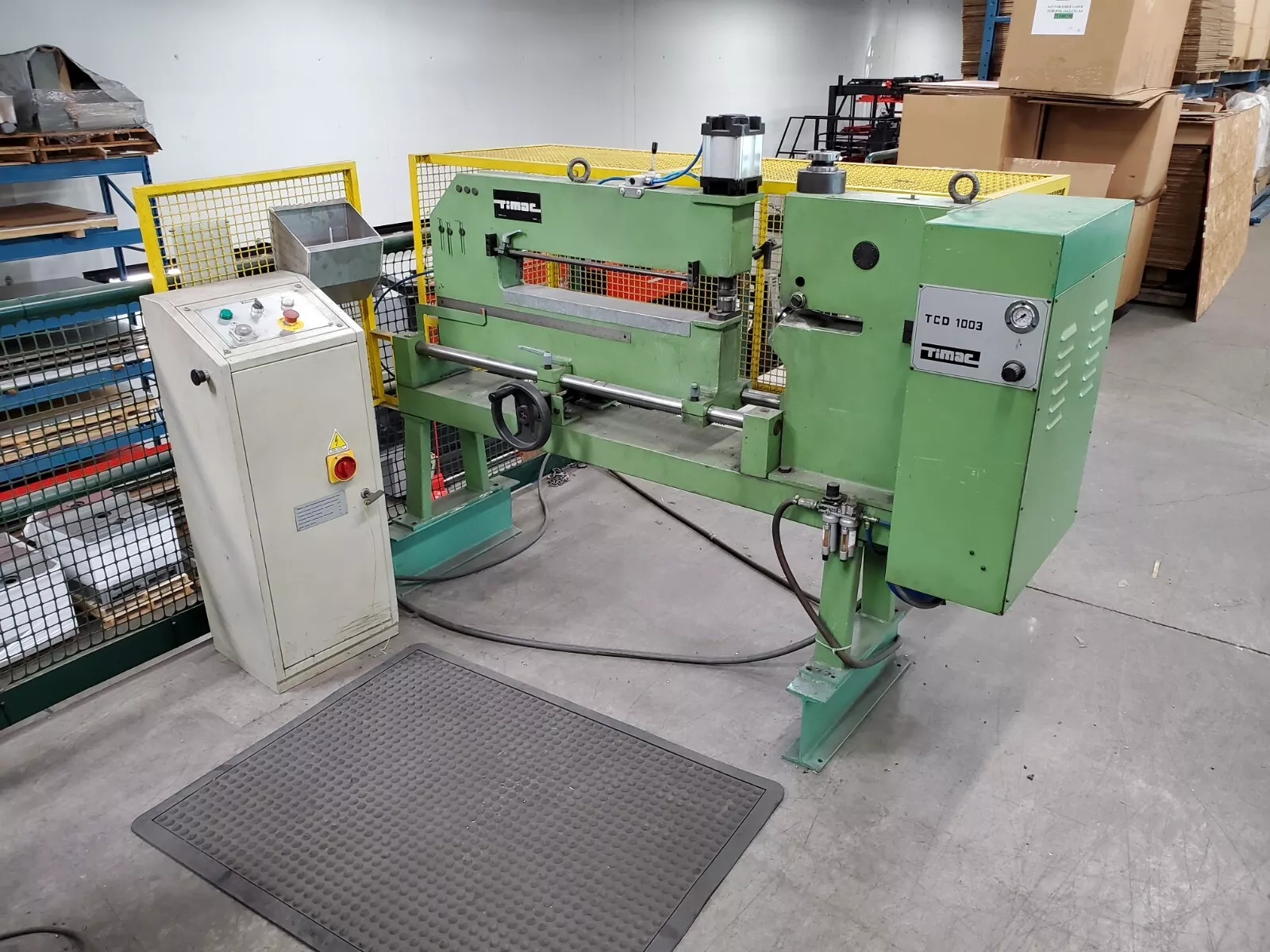

Timac TCD 1003 Circle Cutter
C $7,500.00 OBO
In excellent working condition.
Basic Information
Brand
Timac
Model
TCD-1003
Year
1995
Made In
Italy
Specifications
Capacities
- Diameter: 120-1000mm (5-39 inches)
- Thickness: 3mm (0.12 inches)
- Mild Steel & Aluminum: 0.12 inches / 3mm
- Stainless Steel: 0.08 inches / 2mm
Physical Attributes
- Dimensions: 93 x 24 x 65 inches
- Weight: 1600 lbs
- Min Cutting Diameter: 4.73 inches
- Min Inside Cutting Diameter: 6.30 inches

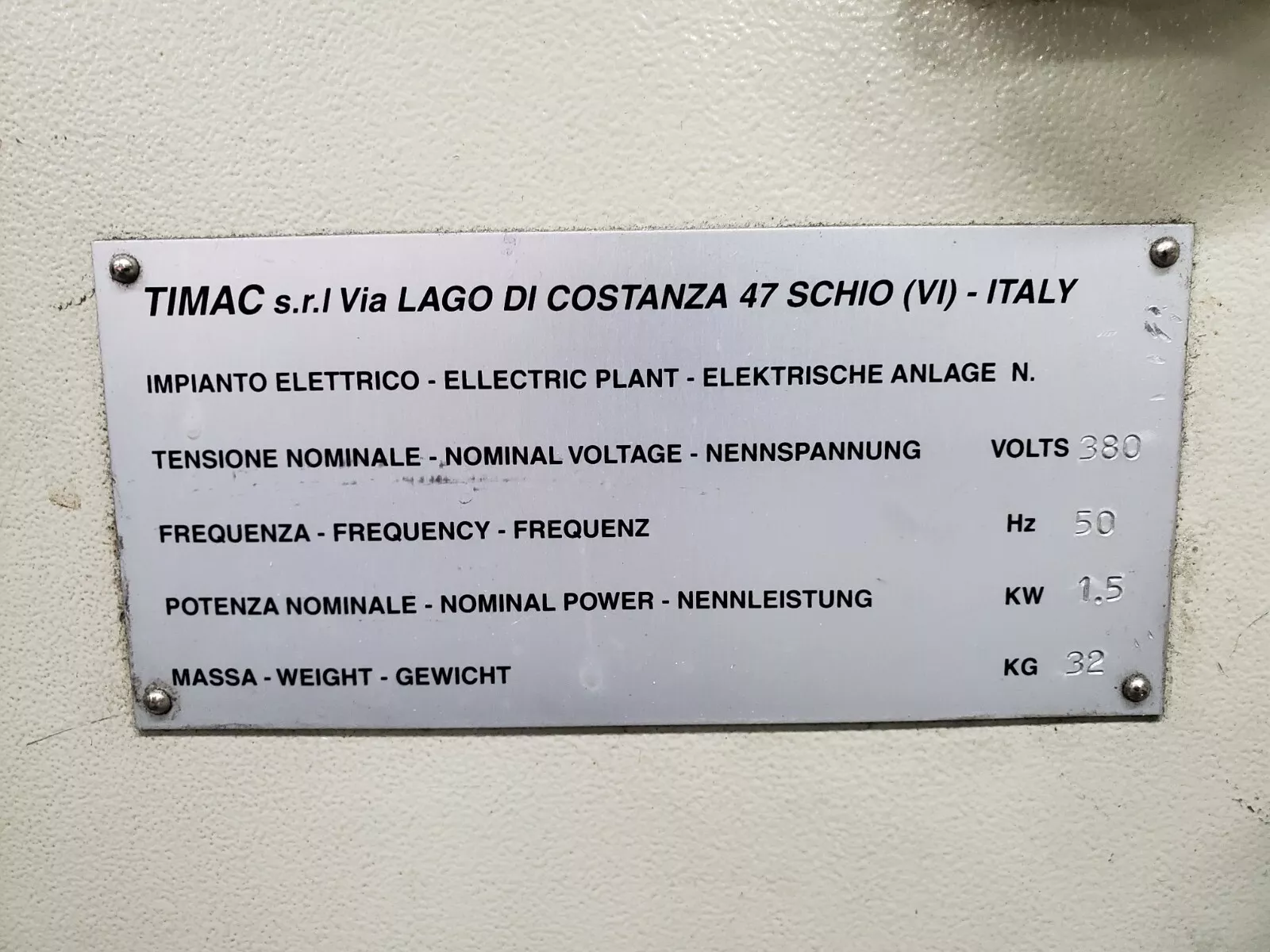

Power Specifications
- Cutting Speed: 26m/min, 85.3 F.P.M.
- Installed Power: 1.50 kW
- Motor: 2 H.P.
- Power Supply: 380V, 40Hz, 3-Phase
Features
- Pneumatic clamp
- Foot pedal
